Automatic Weighing and Dosing System- Main Material
Automatically weigh major material (powder, particle and liquid) according to formula management. Process: Conveying the material--> weighing--> discharging upon receive signal from main machine (like mixer). Repeat the operation.

Conveyor type:
Vacuum
Material (Powder/ Particle) is handled by vacuum. Weight stability is lower comparing the screw conveyor.
Screw

Material (Powder/ Particle) is handled by screw. Higher weight stability.

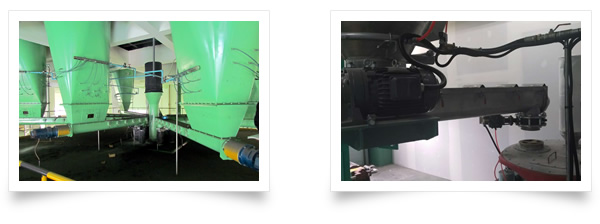

Vacuum conveyor

Screw feeder

Material  (Powder/ Particle) is handled by vacuum conveying  plus screw feeding. Higher  weight  stability.

Gear driven pump

Material (Liquid) is handled by gear driven pump. Higher weight stability.



Vacuum conveyor / Screw conveyor:
Vacuum conveyor Screw feeder Screw (Easy type) Screw (Standard type) Vacuum
Space required 7M in height required from discharge port 7~12M in height required from discharge port according to the size of mixer and ready-bin. 7~20M in height required from discharge port according to the size of mixer and ready-bin. 3~5M in height required from discharge port
Weight range 500G minimum. Main: 10~200KG Sub: 3~10KG
Weight accuracy ±0.2~0.5% F.S. ±5‰~1% F.S.
 Dosing

 cycle time

 1KG/  Sec 1KG/ 10~30 Sec
(According to accuracy equired)
 Maintain/

 Repair

Clean the screw/ barrel.

Clean the filter and barrel  Clean the screw/ barrel.
